Balustrade Systems
Our Eazy-Rail systems enable the most stylish of hand-railing and balustrades to be constructed quickly and simply by the contractor. All you have to do is cut, glue or screw to create professional results every time.
DD Glass Balustrade Systems
Our Eazy-Rail systems enable the most stylish of hand-railing and balustrades to be constructed quickly and simply by the contractor. All you have to do is cut, glue or screw to create professional results every time.
A choice of infills are available including standard and bespoke glass panels. Other Eazy Rail infill solutions include glass clamps, perforated metal, expanded metal, wire, wire mesh and wire rope netting all available from stock, and our aluminium glass balustrade solutions include a number of time and cost-saving options available as either base fix or side fix. Specifiers can be assured that component design and range flexibility mean installation by a competent installer is a straightforward process.
Balustrade Systems
Our balustrade systems are stylish, durable and cost-effective stainless steel handrailing component systems designed with ease of installation in mind.
Square Post System
Our Eazy-Rail Lucentro pre-assembled stainless steel square post system has a geometric design ideal for gardens, patios, decking and balconies as well as internal stairs and walkways. 10mm glass would accompany this system.
Specifications
Post width – 40mm x 40 mm posts
Post heigh – 978mm or 1100mm
Finish – satin or mirror finish
1100mm handrail height when installed with our components on flat surfaces
Posts with glass clamps accept 10mm glass
316 stainless steel
Pre assembled posts
Bolt or screw base fixing
Tested to BS 3180 with a welded base fitting or fascia mount for side fix
Base fitting with cover plate & rubber “O” ring to secure cover plate
Round Post System
Our Eazy-Rail Lucentro round stainless steel post system is the most cost effective balustrade system. Perfect for areas where you wouldn’t want to compromise any views you may have. 10mm toughed glass would accompany this post system.
Specifications
Available in 42.4mm or 48.3mm posts
Available in satin or mirror finish
1100mm handrail height when installed with our components on flat surfaces
Posts with glass clamps accept 10mm glass
A 5 degree variable fixing bolt allows flexibility of alignment when fixing glass
316 stainless steel
Pre assembled posts
Bolt or screw base fixing
Tested to BS 3180 with a welded base fitting or fascia mount for side fix
Base fitting with cover plate & rubber “O” ring to secure cover plate.
Side Fixing Post System
Our Eazy-Rail Lucentro pre-assembled stainless steel side fixing post system is perfect for those areas where base fixing isn’t possible or where walkways maybe obstructed by a base fixing system while still giving you that pristine finish.
Specifications
Available in 42.4mm or 48.3mm posts
Available in satin or mirror finish
1100mm handrail height when installed with our components on flat surfaces
Posts with glass clamps accept 10mm glass
A 5 degree variable fixing bolt allows flexibility of alignment when fixing glass
316 stainless steel
Pre assembled posts
Resin or concrete fixings
Tested to BS 3180 fascia mount for side fixing
Frameless Glass System
Our Eazy-Rail frameless glass Balustrade system is a frameless glass balustrade system for installations up to 0.74kN. This cost-effective system requires no cladding and is quick to install. It is available as base or side fix options and in satin anodised finish to accomodate 12 – 21.5mm glass.
Specifications
PRODUCT FEATURES
Satin anodised finish
Stainless cladding not required
Pre-drilled channel fixing holes
Height to glass when packer fitted is 13mm
Packer height 2mm
Quick & easy to install
Base fixing and side fixing
Anodised Systems
Eazy-Rail curve side railings is an innovative railing system designed to be fully modular. The pre-assembled aluminium 50mm square posts are ready to install. The system can be fully fitted using basic equipment and comes fully engineered to meet the requirements of most applications.
Specifications
Fully assembled 50 x 50mm square posts
Aluminium & satin anodised finish
To suit 10mm glass
Suitable for indoor & outdoor installations
Quick, safe & easy installation
Gap between handrail and glass is 80mm
Bottom edge of glass to floor is 90mm
Tested to 1.2m posts centres
Posts available in bolt-down and side-fix
Specification
Post width: 54mm
Post height: 1137mm handrail or 1106 no handrail
Base size: 121mm
Material – Anodised aluminium
Ocean Side Systems
Our new cost effective range of anodised aluminium handrail fittings and tube, offers the installer a simple, modular system that simply glues and screws together. The system consists of a top rail made from Ø 50mm tube in three exquisite finishes, with a Ø 42mm post that is designed to provide maximum strength.
Specifications
Post length: 1005mm
Post diameter: 42.4mm
Gives overall height of 1100mm when using a base plate, handrail saddle and Ø50mm tube
Material – Anodised aluminium

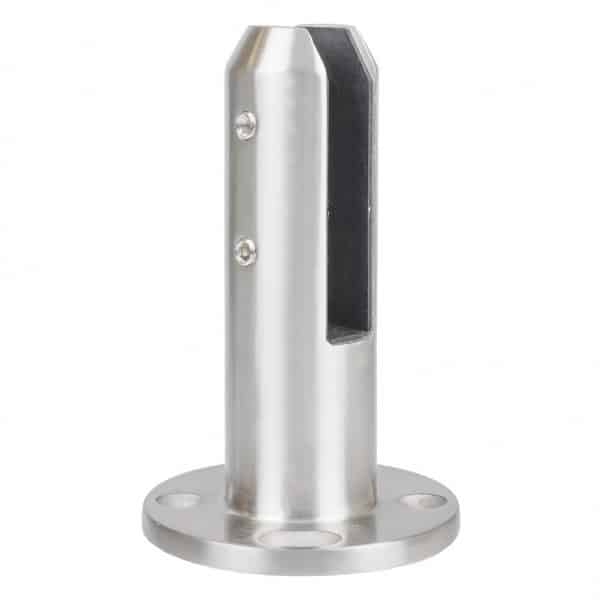

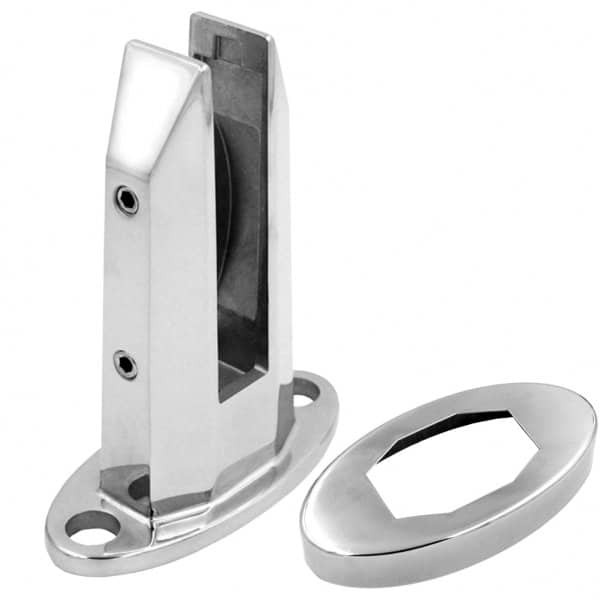

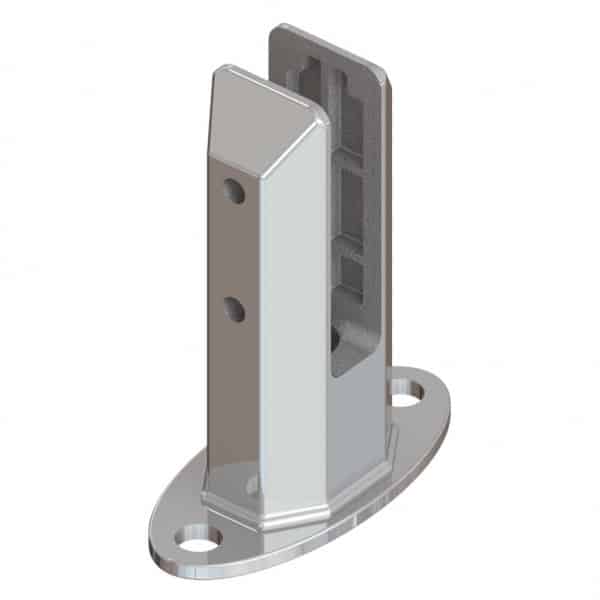

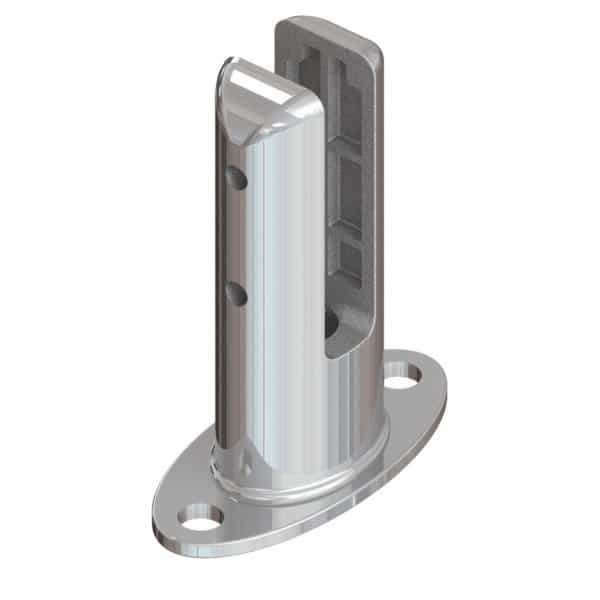

Spigot System
Our Eazy-Rail spigot systems come in 6 different types to meet your required needs.
We supply a range of easy to fit glass spigots in a variety of materials including our Duplex 2205 budget option.
Gallery
Glass spigots are an easy and effective way of creating impressive designs for residential, commercial or public buildings.
Our spigot systems suit between 10mm – 21.5 mm.
Button Stand Off-adapters
Our Eazy-Rail stainless steel button glass stand off-adapters adaptors are a discrete and simple way of holding glass panels in place whilst offering a contemporary touch of elegance to glass balustrades, Juliet balconies, railings or staircase applications.
Specifications
Available in zinc 304 and 316 stainless steel
Available in satin or mirror finish
Suitable for 6 – 25.52mm glass (toughened glass link)
Suitable for indoor or outdoor use
Coated Modular Systems
Eazy-Rail Contemporary railings offer style and sophistication without compromising the views. Choose from 3 polyester powder coated channel colours: black gloss RAL 9005, black sand and white gloss RAL 9016. Also available in a mill/raw finish.
Specifications
This system offers 2 glass styles and can be fitted to aluminium or wooden posts and brick pillars.
50mm Eazy-Rail 1155mm bolt-down posts to achieve a 1100mm high handrail on flat surfaces and with a 2.3mm nominal thickness. Posts are supplied with base cover plate and protective cap.
Available in 3 colours
Material and finish: pre-galvanised powder
coated aluminium
Fixing – Base or side fixing
Post width: 50mm or 75mm
Post height: 1155mm
Base size: 127mm
2.28mm nominal thickness
Colour: black sand
Supplied with protective caps
Includes base cover plates
8mm toughened glass
Wire Rope System
To complement our Eazy-Rail range of products, we offer a 2 wire rope systems as a choice of infill. The stainless steel 3mm or 6mm systems are a simple and cost effective alternative to our cross bar. Wire rope can be fixed to most surfaces, perfect for external applications in residential and commercial environments.
Specifications
Post size – 48.3mm
Post height – 1100.30mm or 972mm
Base plate – 120mm
Wire size – 3mm or 6mm
1100mm handrail height when installed with our components on flat surfaces
Materials – 316 stainless steel
Suitable application – Outdoor and indoor use
Available posts
7 Hole Wire Rope End/Mid post – 48.3mm – C/W Welded base & 7 M6 Eyebolts
14 Hole Wire Rope Mid Post – 48.3mm – As C/W welded base & 14 x M6 Eyebolts
14 Hole Wire Rope Mid Post – 48.3mm – As C/W welded base
14 Hole Wire Rope Corner Post – 48.3mm – C/W welded Base & 14 x M6 Eyebolts
Tested to BS 3180 with a welded base fitting
